| Model | Capacity (kg) | Graduation | Division (g) | Accuracy |
|---|---|---|---|---|
| JCS-3A | 30 | 30,000 | 0.1 | Class III |
| Model | Capacity (kg) | Graduation | Division (g) | Accuracy |
|---|---|---|---|---|
| ACS-3A | 30 | 3000 | 1 | Class III |
Model : Waterproof scale
Capacity : 100kg
Division: 10g
Pan Size: 300x300mm
Battery backup: 30 Hrs
Product weight : 7.5kg
Material: Stainless-Steel body for easy cleaning
Ultra Bright Green LED display on both sides of the scale, one for seller and another for customer’s view.
Recommended Uses For Product: Hygienic weighing of Fisheries, Meat, Vegetables, Sweets, Salt and can be used for all Commercial purposes Food, Retail, Parcel, Laboratory, Industrial, General Grocery stores, Kitchens, Parcel weighing, Warehouses, Retail weighing, Industries, Medicines

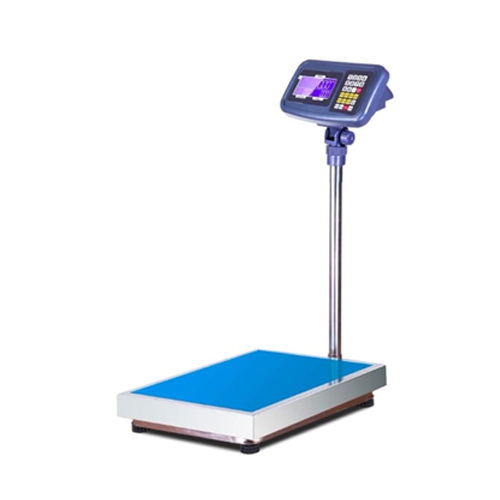

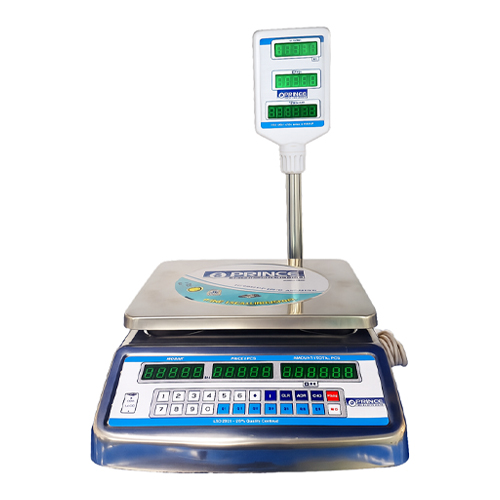

| Product Specification: | |
|---|---|
| Pole Type | Round |
| Material | Stainless Steel |
| Brand | PRC |
| Country of Origin | Made in India |
| Capacity | 10/20/30 kg |
| Accuracy | 1/2/5 gm |
| Pan Size | 250*300 mm |
| Model | Capacity (kg) | Graduation(d) | Division (g) | Accuracy |
|---|---|---|---|---|
| TCS-60Z | 60 | 3000/6000 12000/30000 | 20/10/5/2 | Class III (or your accuracy specification) |
| Model | MAX. Capacity (g) | Readability (mg) |
|---|---|---|
| BSA-120.4 | 120 | 0.1 |
| BSA-220.4 | 220 | 0.1 |

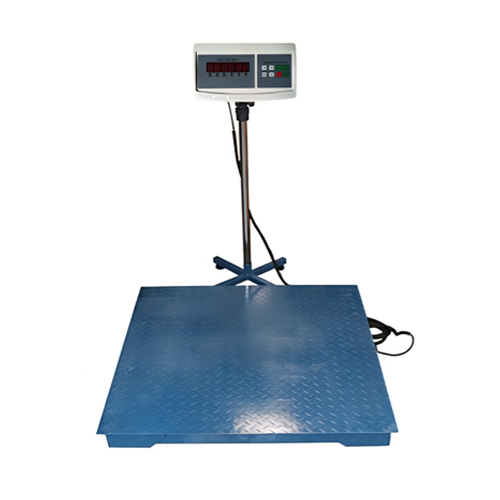

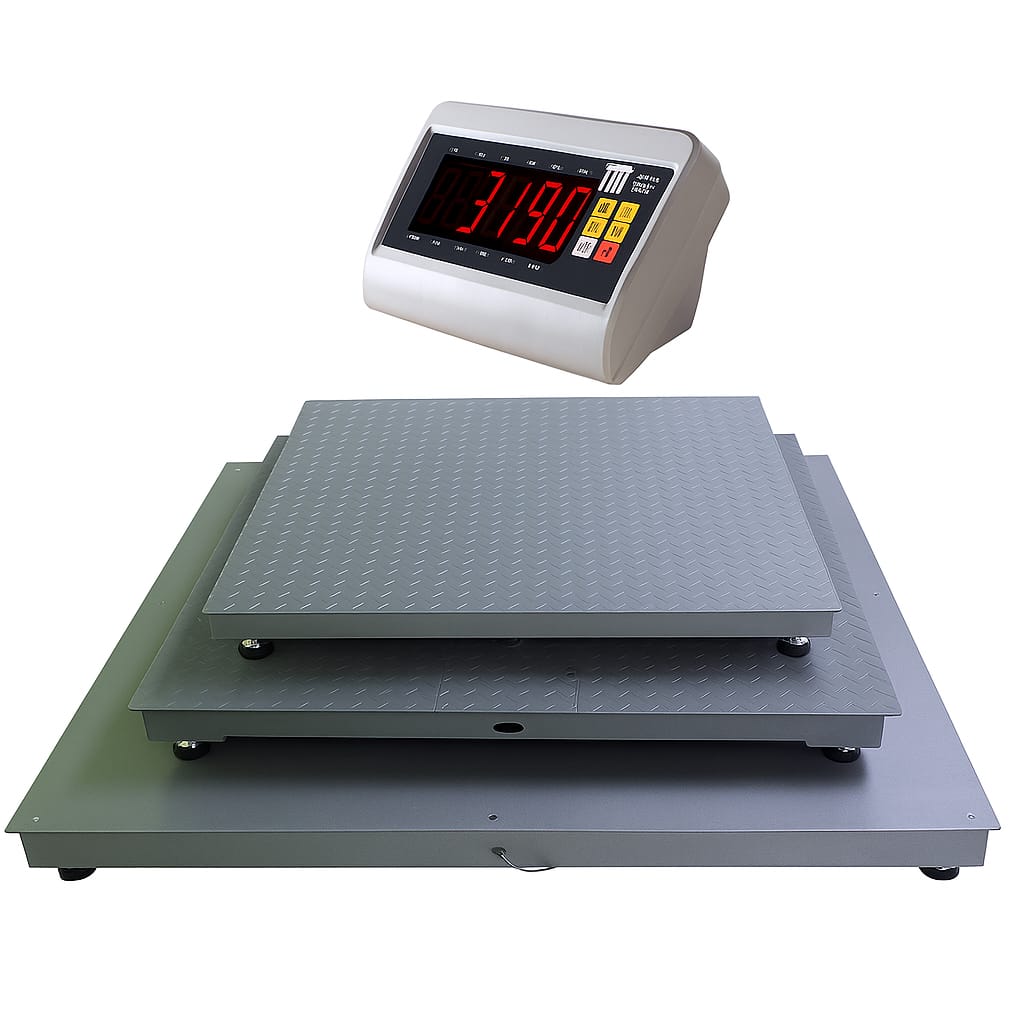

| Model | CAP. (kg) | Division (g) | Platform Size(m) |
|---|---|---|---|
| PLT-0.1 | 3000 | 200 | 1+1 |
| PLT-1.2 | 4000 | 500 | 1.2*1.2 |
| PLT-1.5 | 5000 | 500 | 1.5*1.5 |
| PLT-0.2 | 8000 | 1000 | 2*2 |
| Model | CAP. (kg) | Division (g) | Platform Size (m) |
|---|---|---|---|
| PLT-0.1 | 3000 | 200 | 1+1 |
| PLT-1.2 | 4000 | 500 | 1.2*1.2 |
| PLT-1.5 | 5000 | 500 | 1.5*1.5 |
| PLT-0.2 | 8000 | 1000 | 2*2 |
| Model | CAP. (kg) | Division (g) | Platform Size (m) |
|---|---|---|---|
| PLT-0.1 | 3000 | 200 | 1+1 |
| PLT-1.2 | 4000 | 500 | 1.2*1.2 |
| PLT-1.5 | 5000 | 500 | 1.5*1.5 |
| PLT-0.2 | 8000 | 1000 | 2*2 |

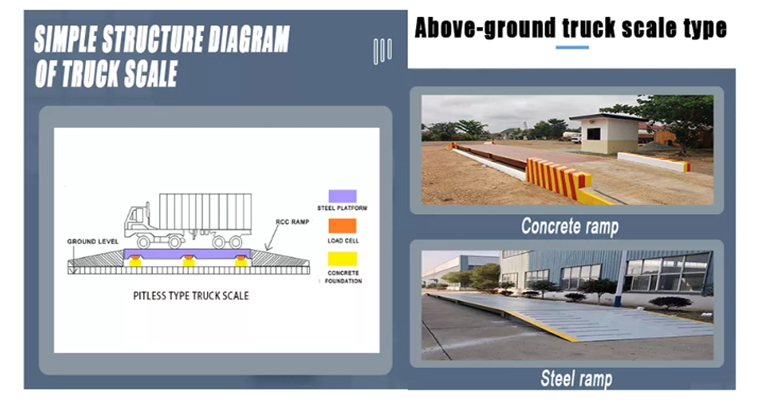

Above-ground truck scales, also known as surface-mounted truck scales, are a common type of weighing system used across various industries for weighing trucks and their cargo. In this section, we provide a detailed overview of above-ground truck scales, including their design, installation process, advantages, and applications.
MODEL : Above-Ground Truck Scales
MAX WEIGHING CAPACITY : 30T , 50T , 60T , 80T , 100T , 120T , 150T , 200T
SIZE : 3X12M , 3X15M , 3X16M , 3X18M , 3X21M , 3X24M , 3.4X18M
Above-ground truck scales, also known as surface-mounted truck scales, are a common type of weighing system used across various industries for weighing trucks and their cargo. In this section, we provide a detailed overview of above-ground truck scales, including their design, installation process, advantages, and applications.
Model:
Structure: Standard U shape beam
Division: 20kg
Steel: High-quality steel
Painting: Anti rust and anti-corrosion painting
Accuracy: OIML III
Power: 220V150Hz
Working Temperature:-35(°)~+70(°C)
Relative Humidity :<95%
Safe overloading: 120%

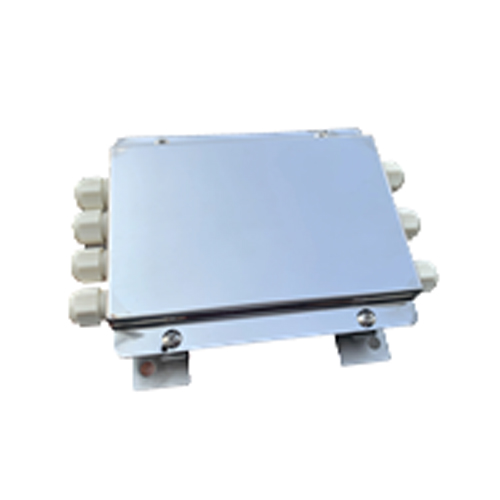

Junction Box:
10 wire junction box
Resistance protection device
Using waterproof Seal joint

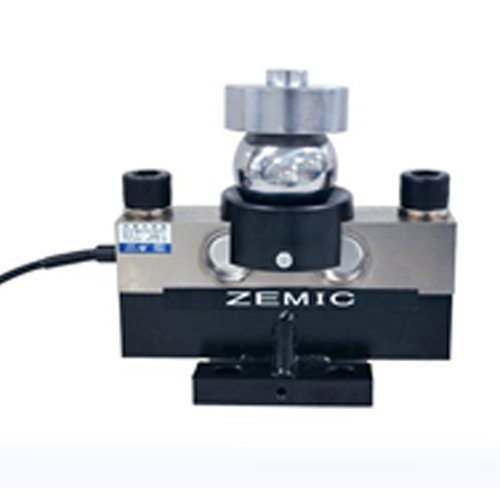

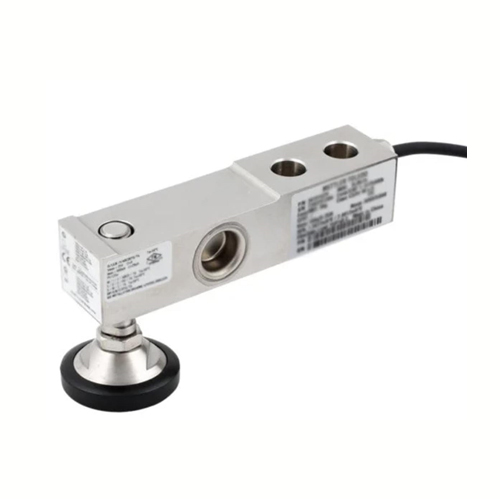

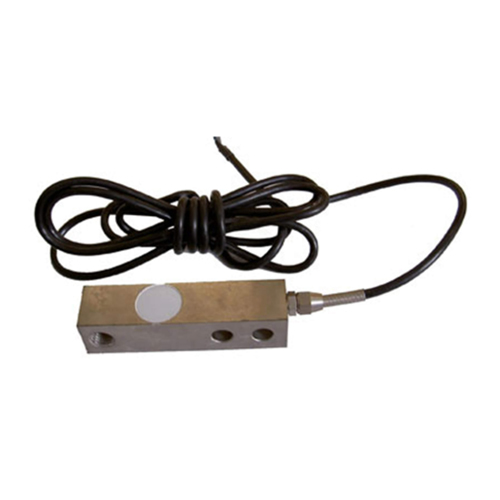

Load Cell Data Sheet:
Rated capacity: 30 tons
Comprehensive precision: OlML C3
Creep(30 minutes):≤+/-0.013%F.S
Nonlinearity: ≤+/-0.010%F.S
Hysteresis:≤+/-0.016%FS
lP protection level:lP68
Working Temperature:-35(℃) ~+70(°C)
Safe overload: 120%F.S
Ultimate overload: 300%F.S hermetically sealed

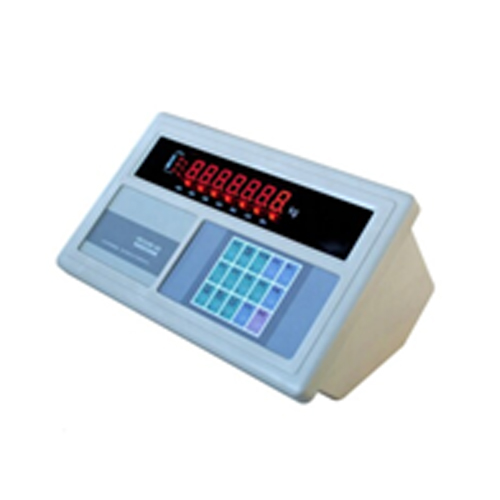

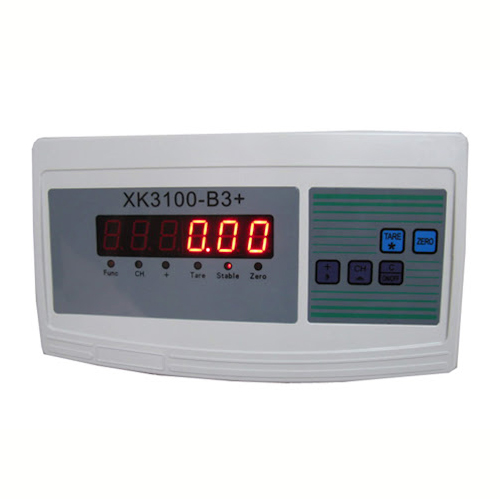

Indicator Data Sheet:
Operating temperature: 0℃~ 40℃
Relative humidity: ≤85%RH
Power supply: 220V 50Hz
Transmission model: RS232C/RS422/RS485
Baud rate: 600/1200/2400/4800/9600
Weighing record storage/check/delete/
Power-off protection Sound Alert when over weight limit

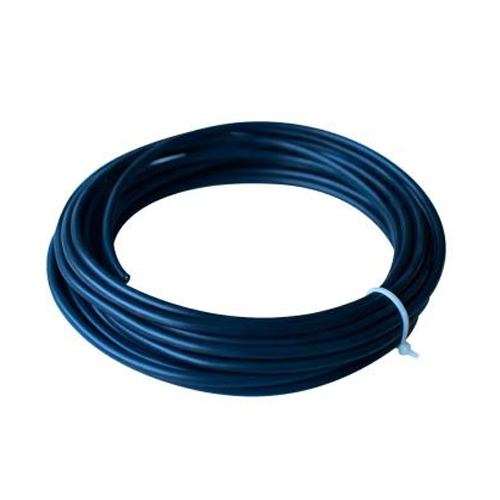

Signal Cable:
6-core wire connect the junction box and load cells

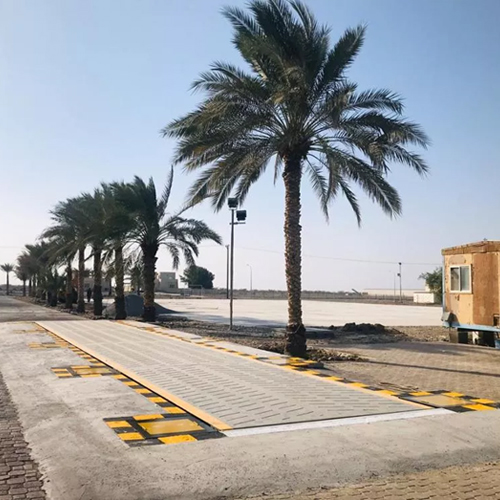

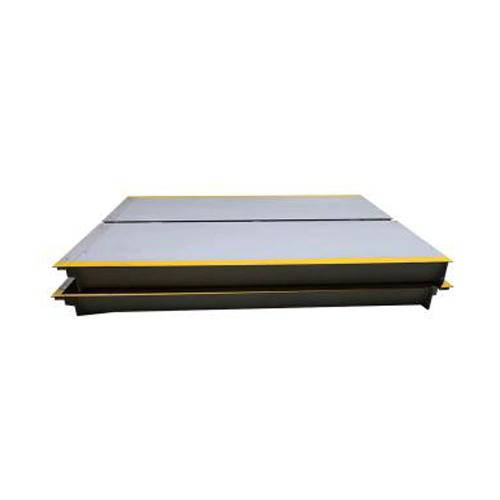

Pit-mounted truck scales, also referred to as in-ground truck scales, are precision weighing systems designed to measure the weight of trucks and their loads. These scales offer unique advantages and are commonly used in industries where accurate and efficient weight measurement is essential. This section provides a comprehensive overview of pit-mounted truck scales, covering their design, installation process, benefits, and applications.
MODEL : Pit-mounted truck scales
MAX WEIGHING CAPACITY : 20T, 30T, 50T, 60T, 80T, 100T, 120T, 150T, 200T
SIZE : 3X12M, 3X15M, 3X16M, 3X18M, 3X24M, 3.4X18M
Model:
Structure:Standard U shape beam
Division:20kg
Steel:High-quality steel
Painting:Anti rust and anti-corrosion painting
Accuracy:OIML III
Power:220V150Hz
Working Temperature:-35(°)~+70(°C)
Relative Humidity:<95%
Safe overloading:120%
Junction Box:
10 wire junction box
Resistance protection device
Using waterproof Seal joints
Load Cell Data Sheet:
Rated capacity: 30 tons
Comprehensive precision: OlML C3
Creep(30 minutes):≤+/-0.013%F.S
Nonlinearity: ≤+/-0.010%F.S
Hysteresis:≤+/-0.016%FS
lP protection level:lP68
Working Temperature:-35(℃)~+70(°C)
Safe overload:120%F.S
Ultimate overload:300%F.S Hermetically sealed
Indicator Data Sheet:
Operating temperature:0℃~ 40℃
Relative humidity:≤85%RH
Power supply:220V 50Hz
Transmission model:RS232C/RS422/RS485
Baud rate:600/1200/2400/4800/9600
Weighing record storage/check/delete/
power-off protection Sound Alert when over weight limit
Signal Cable:
6 core wire connect the iunction box and load cells

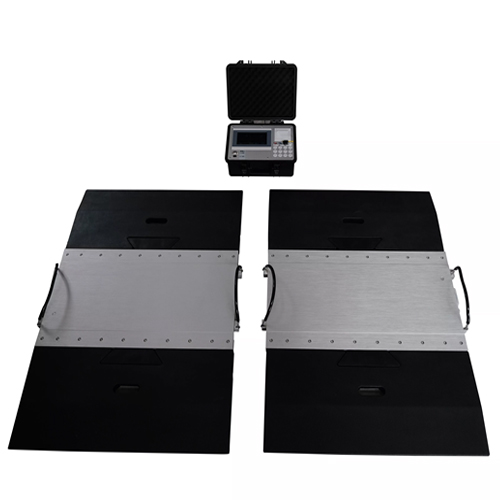

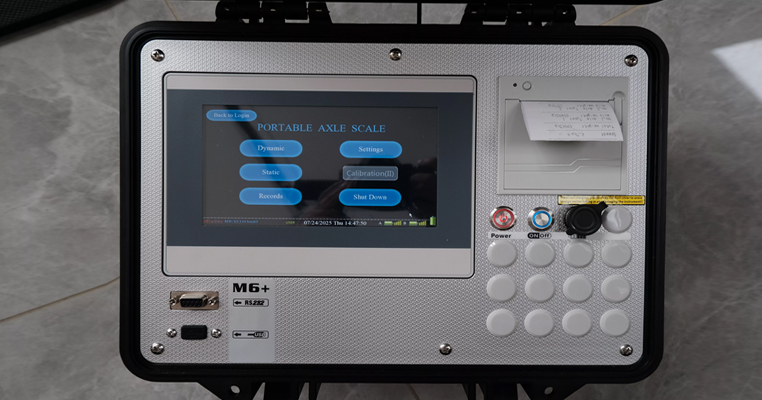

The Hener Portable Axle Scale offers a lightweight, durable solution for on-the-go vehicle weighing. Designed for easy transport and quick setup, it delivers accurate axle weight readings in various field environments. Ideal for logistics, law enforcement, and construction vehicle monitoring.
| Specifications | |||||
|---|---|---|---|---|---|
| Max Capability(Single Axle) | 5t | 10t | 15t | 20t | 30t |
| Pad dimension | 800*430*30(mm) | ||||
| Ramp dimension | 800*350(mm) | ||||
| Precision | Static ±0.05%,Dynastic±2% | ||||
| Load Cell structure | Pad is load cell, strain gauge inside | ||||
| Cable Length | One set include 2 weighing pads, Cable length is 10m and 8m, but longer cable is optional | ||||
| Division | 10kg,20kg,50kg | ||||
| Inspecting Speed | <10km/h on average | ||||
| Work Temperature | -45°C ~ +70°C | ||||
